產品特點:

1、 加工的產品顆粒均勻，穩定;

2、 運用PLC程序觸摸屏控制,可選擇自動添加水和蒸汽,避免不同操作工人為操作的差異而造成產品的不一致;

3、 采用新型材料和工藝加工螺桿,提高螺桿的壽命;

4、 各節膨化腔溫度可單獨控制,簡單方便。

5、 合理有效地利用能量。充分地利用蒸汽，減少電能的消耗，降低配件的磨損，從而減少了加工成本；

6、 主要適用于各種水產飼料的成型加工等。

主要技術及參數

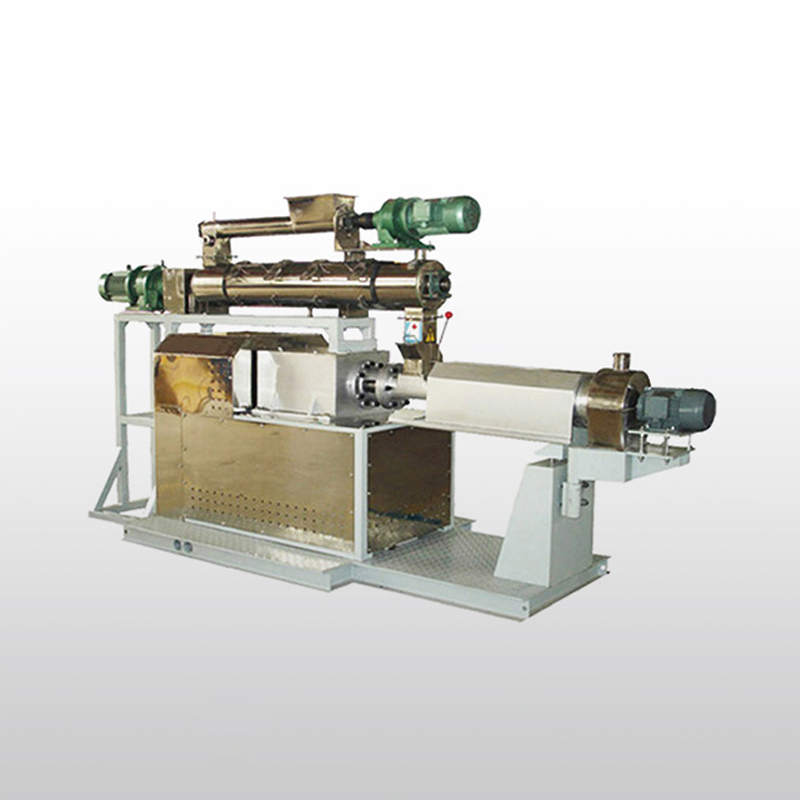

SPHS-D Series Single Screw Steam Extruder

SPHS-D系列單螺桿濕法膨化機

Feature

1. Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.

2. Combined shaft makes it easy to check or replace bearings in bearing house.

3. Involute spline shaft is adapted makes it easy to adjust and replace the screw.

4. Circled tunnel design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.

5. Screw is made of special anti-wear alloy with large L/D ratio assures smoothly production for all kinds of sinking/floating feed.

6. Fast replacing mechanism for die and screw and on-line adjustment for cutter.

7. It is mostly suitable for produce floating pellet in die diameter 2~6mm.

Main Technical Parameters
