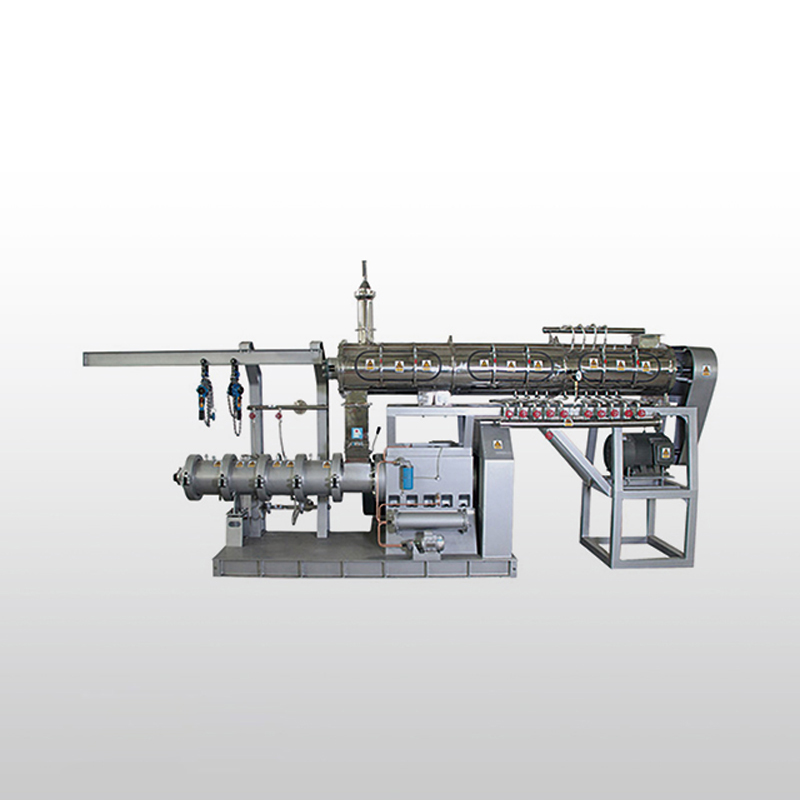

SPHS-S系列雙螺桿濕法膨化機

http://fsdbs.com.cn/uploadfiles/107.151.154.110/webid1399/source/201910/157223282544.jpg
    • SPHS-S系列雙螺桿濕法膨化機
產品詳情

產品特點:

1、雙軸差速不銹鋼調質器,多達12點的蒸汽及6點液體添加;

2、強力齒輪箱,可承受400馬力扭矩及推力,帶循環冷卻系統;

3、機筒內嵌耐磨襯套,外有不銹鋼夾套,可加熱/冷卻,還能直接向機筒內注入蒸汽或冷水;

4、方便快捷的模頭更換機構及可再線調節的切割裝置;

5、特殊耐磨材料制造的螺旋,大至18的長徑比可保證連續穩定生產各種粒徑沉/浮水飼料。

主要規格及技術參數:

參數

型號

主機功率

(kw)

供料動力

(kw)

調質動力

(kw)

切割動力

(kw)

產量

(t/h)

SPHS95S

55

1.5

5.5

3

0.5~1.2

SPHS98S

75

1.5

5.5

3

0.6~1.6

SPHS118S

90

1.5

11

4

0.8~2.0

SPHS120S

110

1.5

11

4

1.5~2.2

SPHS145S

132~160

1.5

15

5.5

2.0~4.0

SPHS148S

160~200

1.5

15

5.5

3.0~6.0

SPHS150S

200~315

2.2

18.5

5.5

8.0~10.0

SPHS-S Series Twin-screw Steam Extruder

SPHS-S系列雙螺桿濕法膨化機

Feature

1. Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.

2. The gearbox can stand strong torque and thrust up to 400hp.

3. Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.

4. Screw is made of special anti-wear alloy with L/D ratio up to 19.5:1 that assures smoothly production for all kinds of sinking/floating feed.

5. It can deal with different formulation. It can produce pellet with die diameter from 0.8mm to 10mm.

6. Fast replacing mechanism for die and screw and on-line adjustment for cutter.

Main Technical Parameters

Parameters

Model

Main Power (kw)

Feeder Power (kw)

Cutter Power (kw)

Conditioner Power(kw)

Capacity

(t/h)

SPHS68S

55/75

1.5

3

5.5

0.5~1.8

SPHS98S

90/110

1.5

4

11

1.5~3

SPHS128S

160/200

2.2

5.5

18.5

3~7

SPHS148S

250/315

2.2

7.5

22

6~12
